What Is DC Fast Charging and Why It Matters for Modern EV Drivers

DC fast charging helps electric vehicle drivers add range during road trips, busy days, and situations where the vehicle cannot remain parked for several hours. It is especially useful when drivers need to continue their journey sooner than Level 1 or Level 2 charging would allow.

Unlike Level 1 and Level 2 charging, DC fast charging sends direct-current power to the battery without relying on the vehicle’s onboard AC charger for the main power conversion. This allows compatible EVs to accept higher charging power during shorter stops.

This guide explains what DC fast charging is, how the charging process works, how long a session may take, and which factors affect charging speed. It also covers connector compatibility, battery considerations, and the situations where fast charging may be the most practical option.

What is DC Fast Charging?

DC fast charging is a high-power charging method that supplies direct-current electricity to an electric vehicle’s battery. It is sometimes called Level 3 charging, although “DC fast charging” is the clearer and more widely used term.

This process significantly increases charging speed. Most homes and businesses are using AC electricity. When using Level 1 or Level 2 charging, the EV’s onboard charger must convert AC power into DC power before the battery can store it. This process of conversion creates a speed limitation as onboard chargers have maximum power capacities.

DC fast charging eliminates this bottleneck.

Rather than relying on the internal converter of the car, the charging station itself performs the AC to DC conversion by using industrial-grade power electronics. The result is dramatically quicker charging speeds.

How Does DC Fast Charging Work?

DC fast charging uses communication between the charging station and the electric vehicle to deliver power safely and efficiently. The charging rate can change throughout the session based on what the battery can accept.

1. The Vehicle and Charger Communicate

After the charging cable is connected, the station communicates with the vehicle’s battery management system. It checks important details such as the battery’s current state of charge, temperature, voltage, and maximum supported charging rate.

This communication helps prevent the charger from delivering more power than the vehicle can safely accept.

2. The Station Converts AC Power to DC

Electricity from the power grid is generally supplied as alternating current. A DC fast-charging station converts that AC electricity into direct current inside the charging equipment.

The station then sends DC power directly to the vehicle’s battery. This bypasses the main power limits of the vehicle’s onboard AC charger and allows compatible EVs to charge at higher rates.

3. Power Is Adjusted During the Session

A DC fast charger does not deliver one fixed amount of power from beginning to end. The vehicle and charger continually communicate and adjust the charging rate based on battery conditions.

Charging is faster when the battery has a lower state of charge. The rate usually decreases as the battery fills or when the battery becomes too hot or cold. Charger output, vehicle capability, weather conditions, and demand at the charging site may also affect performance.

This controlled process allows the vehicle to add range quickly while managing battery temperature and safety throughout the session.

DC Fast Charging Power Outputs Explained

One of the most important differences between charging systems is power output.

Some modern ultra-fast charging stations now exceed 400 kW for commercial fleet applications and next-generation EV platforms.

How Long Does It Take to Charge an Electric Car?

There is no universal charging time for DC fast charging. Some compatible electric vehicles may complete a useful road-trip charging stop in less than 20 minutes under favorable conditions, while other vehicles may require considerably longer.

Drivers looking for a broader comparison can review how long it takes to charge an electric car with Level 1, Level 2, and DC fast charging.

The total charging time depends on several factors:

• Starting battery level: A vehicle arriving with a lower state of charge may initially accept power more quickly.
• Vehicle charging limit: Each EV has a maximum charging rate that it can safely accept.
• Battery capacity: Larger batteries may require more energy, although battery size alone does not determine charging time.
• Battery temperature: Batteries that are too cold or too hot may charge more slowly.
• Charging curve: The vehicle adjusts its charging rate throughout the session, typically slowing as the battery fills.
• Charger output: The station can only provide power up to its available output, but the vehicle may accept less.
• Current site conditions: Charger demand, shared power, and equipment conditions may also affect performance.

Drivers should therefore review their vehicle’s charging capability and focus on the range needed for the next part of the journey rather than expecting one fixed charging time.

Why DC Fast Charging Matters?

DC fast charging helps electric vehicle drivers add range during road trips, busy days, and situations where the vehicle cannot remain parked for several hours. It is especially useful when drivers need to continue their journey sooner than Level 1 or Level 2 charging would allow.

Unlike Level 1 and Level 2 charging, DC fast charging sends direct-current power to the battery without relying on the vehicle’s onboard AC charger for the main power conversion. This allows compatible EVs to accept higher charging power during shorter stops.

This guide explains what DC fast charging is, how the charging process works, how long a session may take, and which factors affect charging speed. It also covers connector compatibility, battery considerations, and the situations where fast charging may be the most practical option.

The Role of Battery Voltage in Fast Charging

Advanced EV platforms increasingly use 800-volt battery systems rather than using conventional 400-volt systems. Higher voltage systems allow:

• Lower current for the same power output
• Reduced heat generation
• Thinner cables
• Faster charging speeds


For example, A 400V system charging at 200 kW needs much higher current than an 800V system charging at the same power level. And this is one reason why newer EVs achieve dramatically shorter charging times.

Charging Connectors and Standards

DC fast-charging connectors are not interchangeable across every electric vehicle. Compatibility depends on the vehicle’s charge port, connector standard, adapter support, software access, and the equipment available at the charging station. Drivers should confirm these details before planning a charging stop.

CCS1

The Combined Charging System Type 1, commonly called CCS1, is used by many electric vehicles in North America. Its design combines AC and DC charging connections within the vehicle’s charge port.

The upper portion supports AC charging, while two additional pins allow the vehicle to receive DC fast charging. Charging speed depends on the vehicle’s supported rate, battery condition, and charger output.

SAE J3400

SAE J3400 is the standardized version of the connector originally developed by Tesla as the North American Charging Standard, or NACS. It supports both AC and DC charging through a compact connector design.

Tesla vehicles commonly use this connector, and a growing number of automakers are adopting SAE J3400 for future electric vehicles. However, access to a charging station may still depend on vehicle software, network support, adapter requirements, and charger availability.

CHAdeMO

CHAdeMO is a DC fast-charging connector associated mainly with certain older Japanese electric vehicles and existing charging installations. It was used by models such as some earlier Nissan and Mitsubishi EVs.

CCS1, SAE J3400, and CHAdeMO are the primary DC fast-charging connector types found in the United States.

Battery Health and Fast Charging

Some drivers worry that frequent DC fast charging damages batteries.

While excessive heat and repeated ultra-fast charging can contribute to battery degradation over time, modern EVs include advanced thermal management systems that minimize wear.

Best practices include:

• Avoiding constant charging to 100%
• Limiting unnecessary ultra-fast charging
• Keeping batteries within moderate temperature ranges
• Using scheduled charging when possible

For most drivers, occasional or regular DC fast charging is completely manageable within normal battery lifespan expectations.

How to Prepare for a DC Fast-Charging Session

A few checks before arriving can help drivers avoid compatibility problems, unavailable chargers, and unnecessary delays.

• Confirm connector compatibility: Check whether the station provides CCS1, SAE J3400, CHAdeMO, or another connector supported by the vehicle.
• Review adapter requirements: Some vehicles may need an approved adapter to use a particular charging connector.
• Check charger availability: Use the vehicle navigation system or charging-network app to review station status before arriving.
• Confirm access requirements: Determine whether the station requires an app, account, membership, or supported payment method.
• Plan a backup option: Keep enough remaining range to reach another charger if the preferred station is occupied or unavailable.
• Precondition the battery when supported: Navigate to the charger through the vehicle system so the battery can prepare for faster charging.
• Park within safe cable reach: Position the vehicle without stretching the charging cable or blocking another space.
• Confirm that charging has started: Check the charger screen, app, or vehicle display before walking away.
• Monitor the session: Review charging progress and return before or shortly after the session is complete.
• Move the vehicle when finished: Freeing the space allows another driver to use the charger and may help avoid idle fees.

Drivers should focus on adding enough range for the next part of the journey rather than automatically waiting for a full battery.

New EV owners can also review how to charge an electric car at a public charging station before their first session.

DC Fast Charging at Diamonds by Raymond Lee

DBRL Electric operates its flagship mixed-use EV charging destination at the Diamonds by Raymond Lee property at 2801 North Federal Highway in Boca Raton. The location brings fast and longer-duration charging options together at one established commercial property.

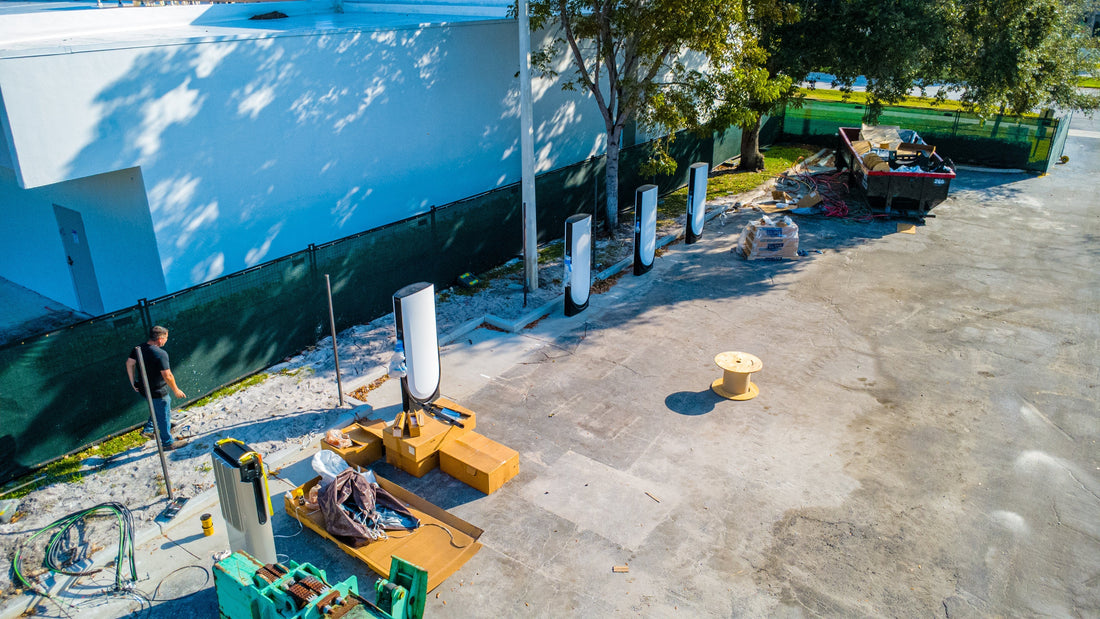

The site includes four Tesla V4 Superchargers that provide DC fast charging for compatible vehicles. These chargers may suit drivers making a shorter stop, traveling through Boca Raton, or preparing to continue toward another South Florida destination.

The property also includes Tesla Destination charging for vehicles that will remain parked longer. Subject to compatibility and availability, this option may be useful during a jewelry appointment, watch consultation, service inquiry, purchase, private gathering, or another planned store visit.

Compatible non-Tesla vehicles may have access to CCS charging through ChargePoint. An existing ChargePoint Express charger provides another option at the location. Drivers should confirm connector support, adapter needs, network access, payment requirements, and current availability before arriving.

Conclusion

DC fast charging gives compatible EVs a way to add range during shorter stops by sending direct-current power to the battery. Actual performance depends on the vehicle, battery temperature, state of charge, charger output, and charging curve.

Drivers can use fast charging more effectively by confirming connector compatibility, checking station availability, and charging only as much as needed for the next part of the journey. Level 2 charging remains useful when a vehicle can stay parked longer.

At the Diamonds by Raymond Lee property in Boca Raton, DBRL Electric brings fast and longer-duration charging options together at one mixed-use destination.

FAQs

Q. What Is DC Fast Charging?

DC fast charging supplies direct-current electricity to an electric vehicle’s battery. The charging station performs the main AC-to-DC conversion, allowing compatible vehicles to accept power faster than they typically can through Level 1 or Level 2 AC charging.

Q. Is DC Fast Charging the Same as Level 3 Charging?

DC fast charging is sometimes called Level 3 charging. However, DC fast charging is the clearer term because it directly describes the type of electricity delivered to the vehicle’s battery.

Q. How Long Does DC Fast Charging Take?

There is no universal charging time. The duration depends on the vehicle’s maximum charging rate, battery capacity, starting state of charge, battery temperature, charging curve, charger output, and current site conditions. Connecting to a high-powered charger does not guarantee that the vehicle will accept its maximum output throughout the session.

Q. Why Does Fast Charging Slow as the Battery Fills?

Electric vehicles usually accept more charging power at a lower state of charge. As the battery fills, the battery-management system gradually reduces the charging rate to control temperature, voltage, and battery stress. The exact charging curve varies by vehicle and battery design.

Q. Can Every Electric Vehicle Use DC Fast Charging?

No. The vehicle must support DC fast charging and be compatible with the station’s connector. Access may also depend on an approved adapter, vehicle software, charging-network support, account requirements, and charger availability. Most plug-in hybrid vehicles do not support DC fast charging.
